Task Decomposition
As in the metaphor (Designer, Manufacturer and Manager), we can describe the task decomposition is way to hire the workers into designing / manufacturing and managing and work concurrently as possible.
Table of contents
Pipeline Pattern
Pipeline pattern is the most common in task decomposition.
We design the steps be in different resources (thread / processes ) and then control the internal outputs/artifacts between the steps by IPC or thread-safe queues, because the steps are usually not finished at the same time.

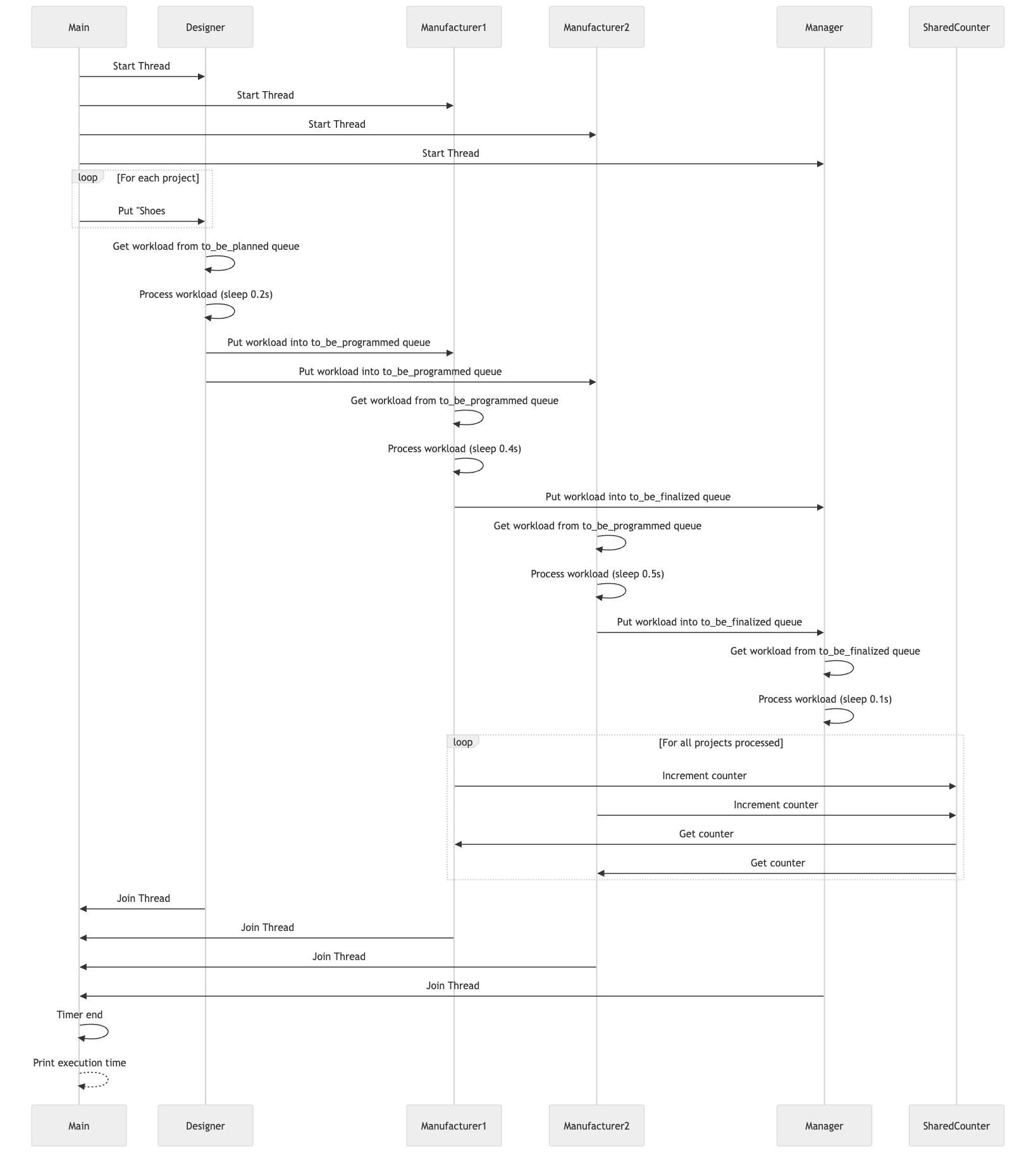

Dependency Graph Example
Python Example
import time
import threading
from queue import Queue
import typing as T
from utils import Timer
Workload = T.AnyStr
class SharedCounter:
def __init__(self, initial_value:int = 0):
self._value = initial_value
self._mutex = threading.Lock()
def increment(self):
with self._mutex:
self._value += 1
def decrement(self):
with self._mutex:
self._value -= 1
def get(self):
with self._mutex:
return self._value
class Worker(threading.Thread):
def __init__(
self,
in_queue: Queue[Workload],
out_queue: T.Optional[Queue[Workload]],
job_type: str,
turnaround_time: int = 4,
num_projects: int = 4, # Ensure workers know the number of projects
process_counter: T.Optional[SharedCounter] = None
):
super().__init__()
self.in_queue = in_queue
self.out_queue = out_queue
self.job_type = job_type
self.turnaround_time = turnaround_time
self.num_projects = num_projects
if process_counter:
self.process_counter = process_counter
else:
self.process_counter = SharedCounter(initial_value=0)
def run(self) -> None:
while self.process_counter.get() < self.num_projects:
try:
workload = self.in_queue.get(timeout=1) # Avoid infinite blocking
except Exception:
continue # Keep checking if no task available
if workload is None:
self.in_queue.task_done()
break # Stop if sentinel received
print(f"{self.job_type} .... {workload}")
time.sleep(self.turnaround_time)
self.process_counter.increment()
if self.out_queue:
self.out_queue.put(workload)
self.in_queue.task_done()
class Pipeline:
def __init__(self, num_projects: int = 4):
self.num_projects = num_projects
def assemble_leathers(self) -> Queue[Workload]:
projects_in: Queue[Workload] = Queue()
for idx in range(self.num_projects):
projects_in.put(f"Shoes #{idx}")
return projects_in
def run_concurrently(self) -> None:
to_be_planned = self.assemble_leathers()
to_be_programmed = Queue()
to_be_finalized = Queue()
designer = Worker(to_be_planned, to_be_programmed, "Designer", turnaround_time=0.2, num_projects=self.num_projects)
# Assume that data decomposition. we hired multiple manufacturers.
shared_counter = SharedCounter(initial_value=0) # use as an atomic value in C++
# suppose that manufacturer1 is more skillful than manufacturer2
manufacturer1 = Worker(to_be_programmed, to_be_finalized, "Manufacturer 1", turnaround_time=0.4, num_projects=self.num_projects, process_counter=shared_counter)
manufacturer2 = Worker(to_be_programmed, to_be_finalized, "Manufacturer 2", turnaround_time=0.5, num_projects=self.num_projects, process_counter=shared_counter)
manager = Worker(to_be_finalized, None, "Manager", turnaround_time=0.1, num_projects=self.num_projects)
designer.start()
manufacturer1.start()
manufacturer2.start()
manager.start()
# Wait for all tasks to be processed
designer.join()
manufacturer1.join()
manufacturer2.join()
manager.join()
if __name__ == "__main__":
with Timer() as timer:
pipeline = Pipeline(num_projects=100)
pipeline.run_concurrently()
C++ Example
#include <iostream>
#include <queue>
#include <mutex>
#include <condition_variable>
#include <thread>
#include <memory>
#include <chrono>
#include <string>
template<typename T>
class ThreadSafeQueue
{
public:
void Push(T item)
{
std::lock_guard<std::mutex> lock(m_Mutex);
m_Queue.push(std::move(item));
m_CV.notify_one();
}
bool Pop(T& item, std::chrono::milliseconds timeout)
{
std::unique_lock<std::mutex> lock(m_Mutex);
if (m_CV.wait_for(lock, timeout, [this] { return !m_Queue.empty(); }))
{
item = std::move(m_Queue.front());
m_Queue.pop();
return true;
}
return false;
}
private:
std::queue<T> m_Queue;
mutable std::mutex m_Mutex;
std::condition_variable m_CV;
};
class SharedCounter
{
public:
SharedCounter(int initialValue = 0)
: m_Value(initialValue)
{}
void Increment()
{
std::lock_guard<std::mutex> lock(m_Mutex);
++m_Value;
}
void Decrement()
{
std::lock_guard<std::mutex> lock(m_Mutex);
--m_Value;
}
int Get()
{
std::lock_guard<std::mutex> lock(m_Mutex);
return m_Value;
}
private:
int m_Value;
std::mutex m_Mutex;
};
class Worker
{
public:
Worker(
ThreadSafeQueue<std::string>& queueIn,
ThreadSafeQueue<std::string>* queueOut,
std::string jobType,
std::chrono::milliseconds turnaroundTime,
int numProjects,
std::shared_ptr<SharedCounter> processCounter = nullptr
)
: m_QueueIn(queueIn)
, m_QueueOut(queueOut)
, m_JobType(std::move(jobType))
, m_TurnaroundTime(turnaroundTime)
, m_NumProjects(numProjects)
, m_ProcessCounter(processCounter ? processCounter : std::make_shared<SharedCounter>())
{}
void Start()
{
m_Thread = std::thread(&Worker::run, this);
}
void Join()
{
if (m_Thread.joinable())
{
m_Thread.join();
}
}
~Worker()
{
Join();
}
private:
void run()
{
while (m_ProcessCounter->Get() < m_NumProjects)
{
std::string workload;
bool isPopped = m_QueueIn.Pop(workload, std::chrono::seconds(1));
if (isPopped)
{
std::cout << m_JobType << " .... " << workload << std::endl;
std::this_thread::sleep_for(m_TurnaroundTime);
m_ProcessCounter->Increment();
if (m_QueueOut)
{
m_QueueOut->Push(workload);
}
}
}
}
private:
ThreadSafeQueue<std::string>& m_QueueIn;
ThreadSafeQueue<std::string>* m_QueueOut;
std::string m_JobType;
std::chrono::milliseconds m_TurnaroundTime;
int m_NumProjects;
std::shared_ptr<SharedCounter> m_ProcessCounter;
std::thread m_Thread;
};
class Pipeline
{
public:
Pipeline(int numProjects)
: m_NumProjects(numProjects)
{}
void RunConcurrently()
{
ThreadSafeQueue<std::string> toBePlanned;
for (int idx = 0; idx < m_NumProjects; ++idx)
{
toBePlanned.Push("Shoes #" + std::to_string(idx));
}
ThreadSafeQueue<std::string> toBeProgrammed;
ThreadSafeQueue<std::string> toBeFinalized;
Worker designer(toBePlanned, &toBeProgrammed, "Designer", std::chrono::milliseconds(200), m_NumProjects);
auto sharedCounter = std::make_shared<SharedCounter>();
Worker manufacturer1(toBeProgrammed, &toBeFinalized, "Manufacturer 1", std::chrono::milliseconds(400), m_NumProjects, sharedCounter);
Worker manufacturer2(toBeProgrammed, &toBeFinalized, "Manufacturer 2", std::chrono::milliseconds(500), m_NumProjects, sharedCounter);
Worker manager(toBeFinalized, nullptr, "Manager", std::chrono::milliseconds(100), m_NumProjects);
designer.Start();
manufacturer1.Start();
manufacturer2.Start();
manager.Start();
designer.Join();
manufacturer1.Join();
manufacturer2.Join();
manager.Join();
}
private:
int m_NumProjects;
};
class Timer
{
public:
Timer()
{
start = std::chrono::high_resolution_clock::now();
}
~Timer()
{
auto end = std::chrono::high_resolution_clock::now();
auto duration = std::chrono::duration_cast<std::chrono::milliseconds>(end - start);
std::cout << "Time taken: " << duration.count() << " milliseconds" << std::endl;
}
private:
std::chrono::time_point<std::chrono::high_resolution_clock> start;
};
int main() {
{
Timer timer;
Pipeline pipeline(100);
pipeline.RunConcurrently();
}
return 0;
}
Conclusion
Pipeline pattern is often used in the big data ETL (Extract, Transform, Load) process. As you can have noticed, the pipeline allows us to limit the number of threads, such as in the thread pool. This is why it is most useful when the number of shared resources is limited.
